| 顯示內容 | 產品圖 | 型號 | 尺寸 (寸) |
外形尺寸 (mm) |
視域尺寸 (mm) |
引腳 | 視角 | 接口 | IC Part No. | 亮度 (cd/m2) |
溫度 (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|

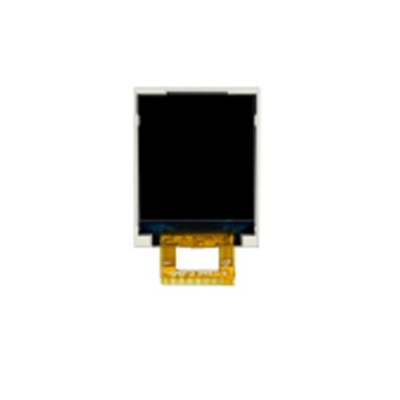

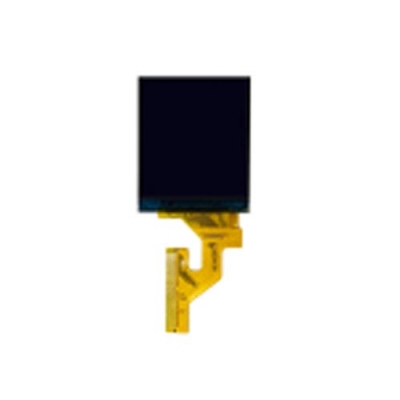

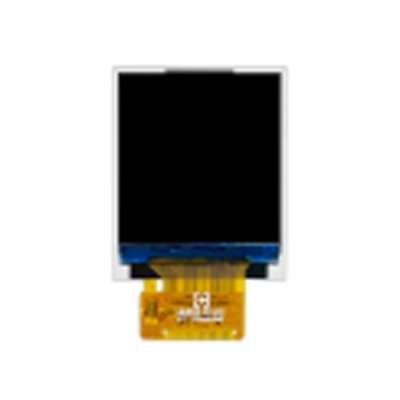

| 128(RGB) x128 |  |
QT-T144NH18LP01 | 1.44 | 29.50(W ) × 36.50 (H) × 2.60(T) | 25.4976(W) x26.496(H) | 18pin | TN-12 o`clock | SPI 4W | ST7735S + HSD | 200Cd/m3 | - 20~+70°C |

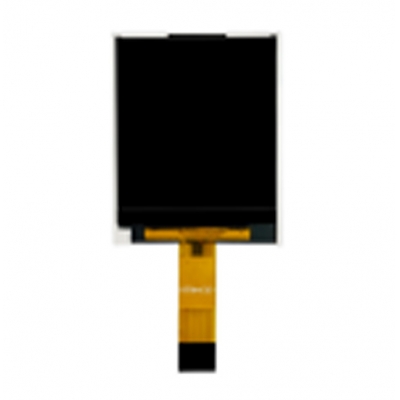

| 128(RGB) x128 |  |
QT-T14NC15WP01 | 1.40 | 27.90 x32.64 x1.90 | 25.50x26.50 | 15pin | TN-12 o`clock | 4 SPI Serial interface | ST7735S | 200Cd/m3 | - 20~+70°C |

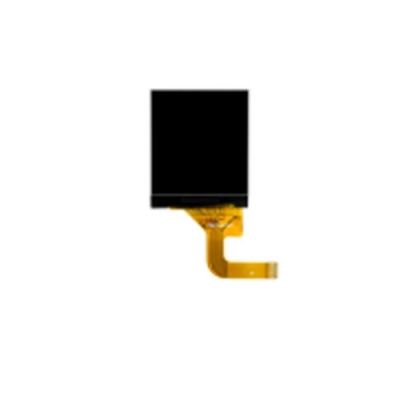

| 128*128 |  |
QT-T144NH33WP01 | 1.44 | 27.90x32.50x1.95 | 25.50x26.50 | 33pin | TN-12 o`clock | 4SPI 1 DATALINE | ST7735 | 300Cd/m3 | - 20~+70°C |

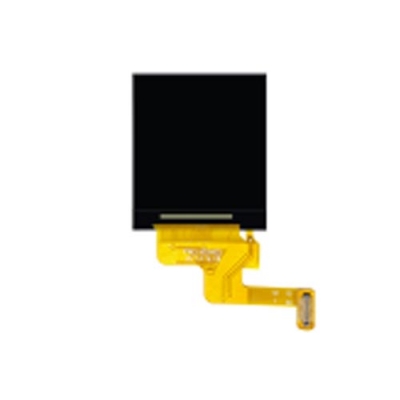

| 240*240 |  |
QT-T14NC24WP01 | 1.40 | 27.9X31.35X1.65 | 25.2X25.2 | 24pin | IPS | 4SPI 1 DATALINE | ST7789H2 | 300Cd/m3 | - 20~+70°C |

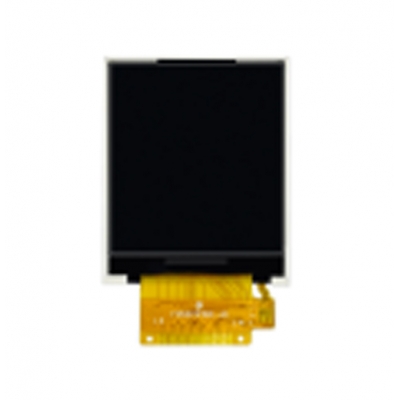

| 128*128 |  |
QT-T144NC12ZP01 | 1.44 | 29.5(W)x36.5(H) | 25.5(W) x 26.5(H) | 12pin | TN-12 o`clock | SPI | GC9106 | 150Cd/m3 | - 20~+70°C |

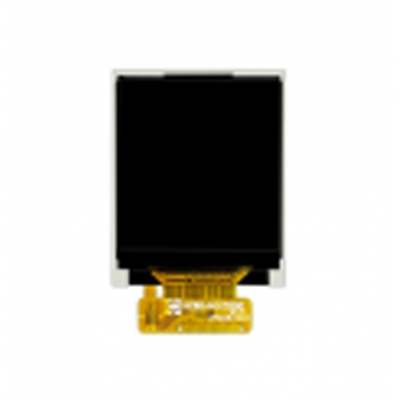

| 128*128 |  |
QT-T144NH14ZP01 | 1.44 | 34.41(H)x29.9(V) | 25.5x26.5 | 14pin | TN-12 o`clock | SPI | ST7735S | 200Cd/m3 | - 20~+70°C |
| 128*128 |  |
QT-T144SH14ZP01 | 1.44 | 36.5(H)*29.5(V) | 25.5x26.5 | 14pin | TN-12 o`clock | SPI | ST7735S | 400-500Cd/m3 | - 20~+70°C |
| 128*128 |  |
QT-T144NH12ZP01 | 1.44 | 36.5(H)*29.5(V) | 25.5x26.5 | 12pin | TN-12 o`clock | SPI | ST7735S | 400-500Cd/m3 | - 20~+70°C |

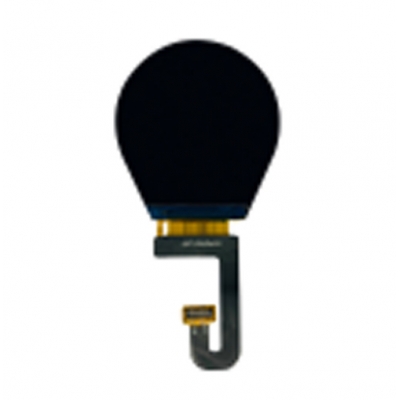

| 240*240 |  |

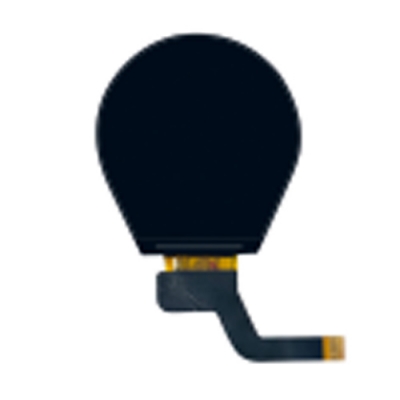

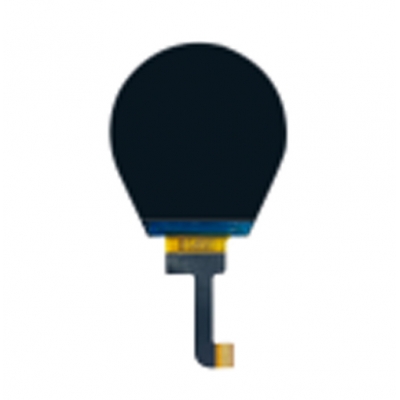

QT-T13ST16ZP01-Y | 1.3寸圓形 | 35.5x38.23x1.5 | 32.40x32.40 | 16pin | IPS(Full View) | 4-line 8bit serial | ST7789V | 230CD/m3 | - 20~+70°C |

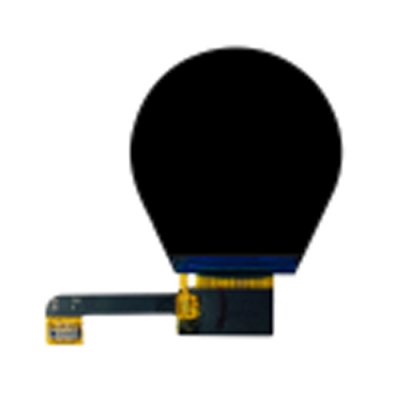

| 240*240 |  |
QT-T13ST24WP01-Y | 1.3寸圓形 | 35.5x38.23x1.5 | 32.40x32.40 | 24pin | IPS(Full View) | 4-line 8bit serial | ST7789V | 230CD/m3 | - 20~+70°C |
| 240*240 |  |
QT-T13ST15ZP01-Y | 1.3寸圓形 | 35.5x38.23x1.5 | 32.40x32.40 | 15pin | IPS(Full View) | 4-line 8bit serial | ST7789V | 230CD/m3 | - 20~+70°C |
| 240*240 |  |
QT-T13ST13WP01-Y | 1.30 | 35.5x38.23x1.5 | 32.40x32.40 | 13pin | IPS(Full View) | 4-line 8bit serial | ST7789V | 230CD/m3 | - 20~+70°C |
 |
